Objects and relations

Objects (nodes)

An object is a type of element of your domain (e.g. BRAND, PART, CONTRACT). Each object carries attributes: the information stored for each of its instances.

Create an object:

1. Click + in the Objects section of the side list
2. Give it a name and a description
3. Add its attributes in the detail panel

Example: the CONTRACT object

Attribute	Type
unit_price	FLOAT
currency	STRING
annual_volume	INT
starting_date	DATE

For each object and each attribute, you can set a sensitivity level (e.g. C1).

You can also change an object’s icon, to recognize it at a glance on the diagram (e.g. a document for CONTRACT, a silhouette for SUPPLIER).

Relations (edges)

A relation connects two objects and describes their link (e.g. PART -[purchased_via]-> CONTRACT). Like an object, a relation can carry attributes.

Create a relation: connect two objects directly on the diagram, or click + in the Relations section of the side list.

Example:

BRAND    -[produces]->        MODEL
MODEL    -[based_on]->        PLATFORM
MODEL    -[contains]->        ASSEMBLY
ASSEMBLY -[consists_of]->     PART
PART     -[purchased_via]->   CONTRACT
CONTRACT -[negotiated_with]-> SUPPLIER
PART     -[equivalent_to]->   PART

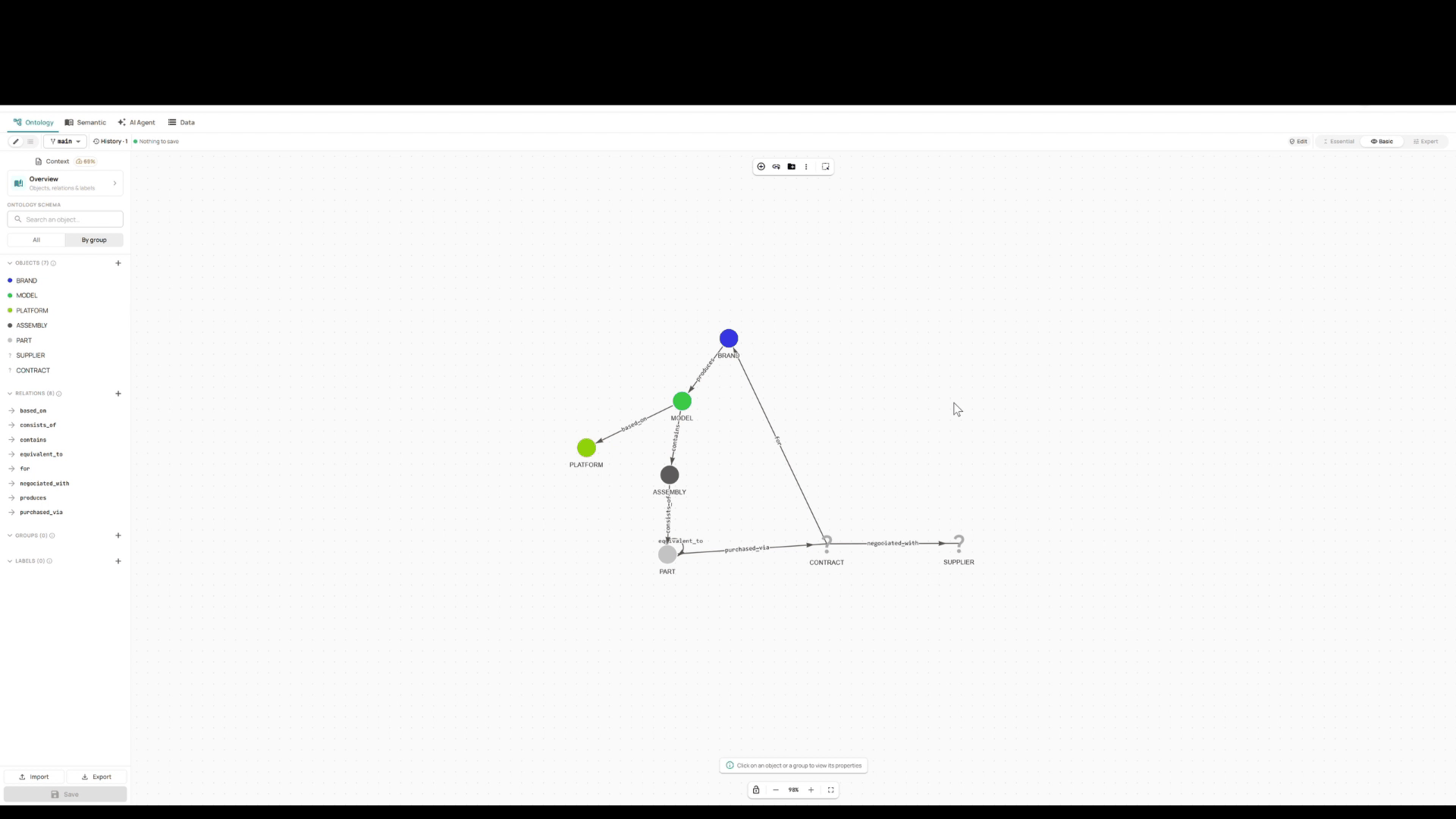

Semantic layer

Available in Basic and Expert modes.

Each object and each relation can be enriched to help the AI assistant understand it properly:

• Short description (objects only) — a short sentence that sums up the object
• Long description — what the element represents in your business
• Synonyms — the other words users use
• Business rules — the rules to know to interpret the data correctly

Example: the PART object

Short description: Vehicle component.
Description: A physical component mounted on a vehicle, identified by its reference.
Synonyms: component, piece, item, spare part
Business rules:
- Two parts with different references can be functionally identical;
  they are then linked by equivalent_to.
- The price of a part is never stored on the part itself:
  read unit_price on its CONTRACT (PART -[purchased_via]-> CONTRACT).

The more the ontology is enriched, the better the quality score (see Semantic).
